Project: ChessCam

This is a project of the CIIS course (WS 2019/20). The content below was created by Christian Kati.

We need your consent to load content.
In order to show videos we use the services of third-party providers. These providers can collect data about your activities. Further details can be found under “Learn more”.


Motivation & Idea

Chess is a game of wit and strategy. Improving your abilities requires understanding your mistakes and what superior moves you have have played. One way to get the best move for a given position is to use a chess engine. Online applications usually have a chess engine integrated. Analying offline games means reconstructing the game. This process is tedious, slow and prone to errors. Having a system to automatically recognize the state of the game and give feedback would be valuable.

The App

The idea and implementation for analyzing a given chess game is fairly simple:

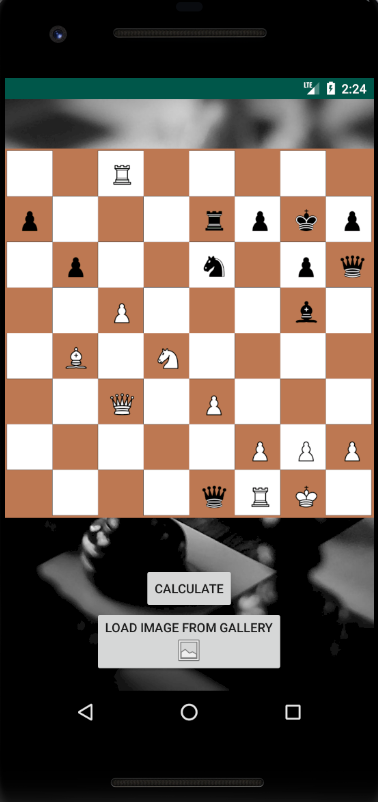

  • Take an image of a chessboard.
  • The image is divided into 64 sub-images. These are used for multiclass classification of 13 classes(6 pieces for each color and one empty field) using a neural network. The neural network was implemented in Keras and used 1800 samples for training. For deploying the Keras model on Android, TensorflowLite was used.

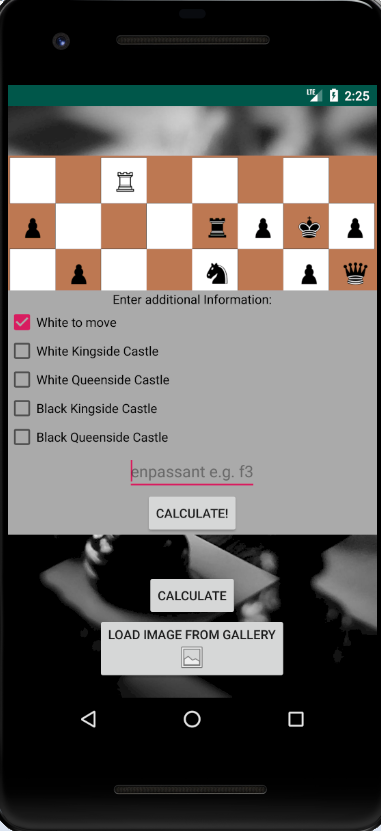

  • The game is fed into a chess engine for evaluation. Usually Engines like Stockfish are used. For reasons of simplicity, Droidfish was used in our App. The game was converted in FEN Notation, a common format for chess engines. Before evaluation, the user has to enter additional information e.g. who’s turn it is, if castling is possible or en-passant capturing is allowed.

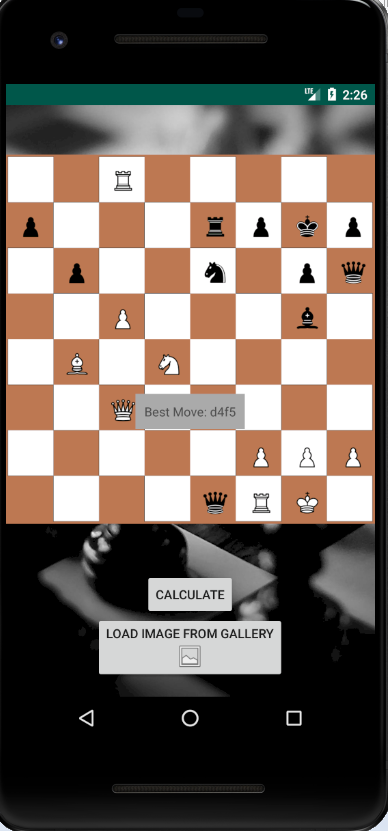

  • The player gets feedback from the engine by suggesting the best possible move.
